Each Kit Comes with the Grenade Glass Top, XL Replacement Heater Coil, and Extended Titanium Sleeve and Carb Cap.

We added 2 more heat settings (one hotter setting and one lower temp setting from the old core) to accommodate more temp options for the standard v5 cup and also the XL v5 cup.

The XL Deluxe Core, now upgraded with the XL Nice Dreamz coil assembly featuring the XL V5 side and bottom heated cup. This improved design offers a superior experience with a fully heated, high-polish ceramic surface and taller cup walls, providing maximum flavor, efficiency, and easier cleanup. The thicker, tougher leads prevent crimping or breaking, while the taller walls reduce splashing, making the overall experience cleaner and more convenient over time. This coil fits all our devices, including the Nice Dreamz Concentrate Fogger, all Cores, and v5 Concentrate Heater.

Better engineered than competing eRigs on the market, the unit comes with a 1-year guarantee against internal failures.

We are now offering a non-rebuildable XL heater coil as an option for customers who may find the rebuildable version difficult to work with. The non-rebuildable XL heater coil is designed specifically for those with dexterity challenges or for anyone intimidated by the small screws and spacers required for rebuilding. For convenience and reliability, the non-rebuildable XL coil has been tested for over 6 months with daily use, and with proper maintenance, we’ve seen no signs of wear or issues, ensuring long-lasting performance.

Grenade Glass Features

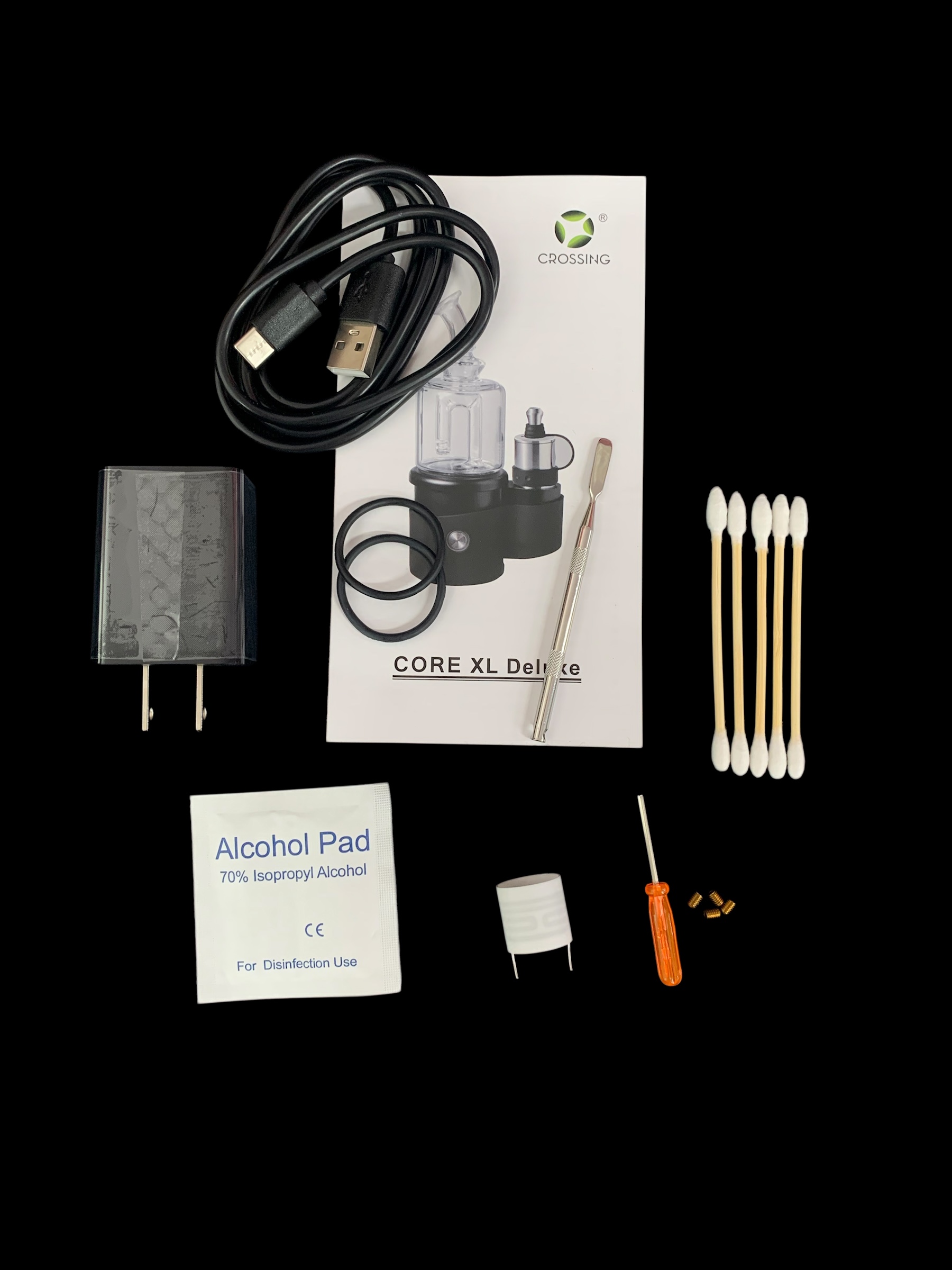

What’s Included

XL Deluxe Core Instructions

Session Times and Temperatures

The total session time for the XL Core Deluxe has been upgraded to 80 seconds, including the pre-heat time.

Setup

1. Charge your base using the provided wall plug and cable.
2. Fill the bubbler from the top, when it is removed from the base. Ensure any excess liquid has been wiped away and that no water has flooded into the bottom compartment. If this happens, turn the bubbler upside down and blow into the air hole at the bottom to clear this section. Then re-fill from the top.

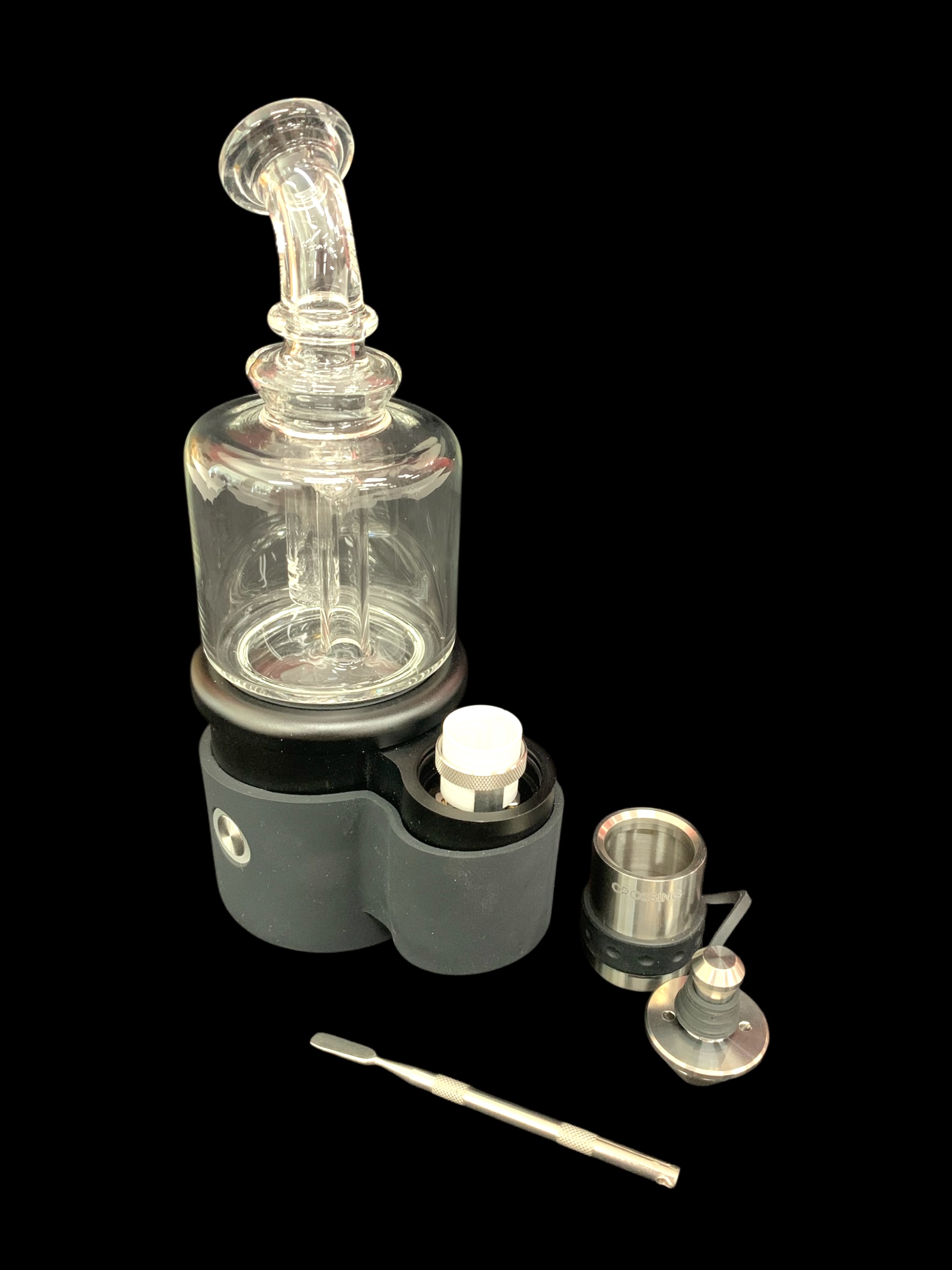

3. Place the bubbler onto the XL Deluxe Core Base at an angle, ensuring that the hole in the bubbler base aligns with the vapor pathway in the XL Deluxe Core base, then gently and firmly push it straight down into place.
4. Check small screws in the atomizer base which hold the heater legs; these need to be tightened so they are firm, but not so much that they cut the wire legs off the heater. When this is done, screw the atomizer into the XL Deluxe Core base.
5. Place the carb cap tube on the base so that the wider angled side sits at the top, leaving the carb cap on the tether so that concentrate can be loaded onto the heater.
6. Select the desired heat setting (start low and work up to the desired heat).
7. See instructions included with the XL Deluxe Core for more session and usage details.

Cleaning

• Wipe out the heater with a Q-tip after each use.
• Clean the area around the RDA heater weekly to stop residue from building up.
• Every month, approximately, wipe out the airway with a Q-tip soaked in ISO – allow to fully dry before use.
• Replace bubbler water daily.
• To clean the bubbler, fill it with hot water and shake to remove large residues. Soak in ISO to fully clean, then rinse thoroughly with warm water after soaking.
• The RDA heater can be removed and screwed into a heat sink on a box mod, then run at 36W for 1-2 minutes to perform a burn-off cycle. Link for the heater coil sold separately here.

Safety Features 🛡️

Certifications 📜

Warning Lights 🚨

Warranty Information 📄

Parts for Core XL Deluxe

Additional Questions or Concerns ❓

• Be sure to check out our YouTube channel for instructional videos. Also, check out our forum on Reddit. We are an active community with many users ready to help out.
• As always, feel free to contact matt@ineedhemp.com with any issues. 📧
• Join our community on Discord for additional support and discussions! 💬
